Grey Iron Castings: Properties and Applications

At RefacX, we support global industries with high-quality grey iron castings manufactured by certified Korean foundries. With decades of expertise and strict adherence to international standards, our suppliers deliver castings that combine reliability, cost-effectiveness, and performance across construction, energy, heavy machinery, and infrastructure projects.

What is Grey Iron?

Grey iron, also known as gray cast iron, takes its name from the grey-colored fracture surface caused by graphite flakes within its structure.

• Composition: typically 1.5–4.3% carbon, 0.3–5% silicon, plus manganese, sulfur, and phosphorus.

• Characteristics: excellent castability, good vibration damping, and cost-effectiveness. While its tensile strength is lower compared to ductile iron or steel, grey iron remains one of the most widely used and economical casting materials.

Grey iron has been used in engineering for centuries. When the composition and cooling rates are properly controlled, graphite flakes form within the metal matrix, influencing both the strength and machinability of the casting.

What is Grey Iron Casting Made From?

Grey iron castings are generally produced using pig iron, steel, or recycled iron scrap as the base material.

• Carbon and Silicon Adjustment: To achieve the right metallurgical properties, alloying elements are carefully controlled.

• Impurity Control: Elements like chromium and nickel, if excessive, can cause brittleness, so high-quality melting and refining processes are critical.

By applying advanced melting technologies, Korean foundries ensure stable chemical compositions and consistent casting quality even for large-scale or complex components.

How to Produce Grey Iron Castings

Grey iron castings can be produced using several different processes, each suited for specific applications, part sizes, and quality requirements. At RefacX, we work with certified Korean foundries that leverage advanced casting techniques to ensure consistent performance, cost-effectiveness, and international quality compliance.

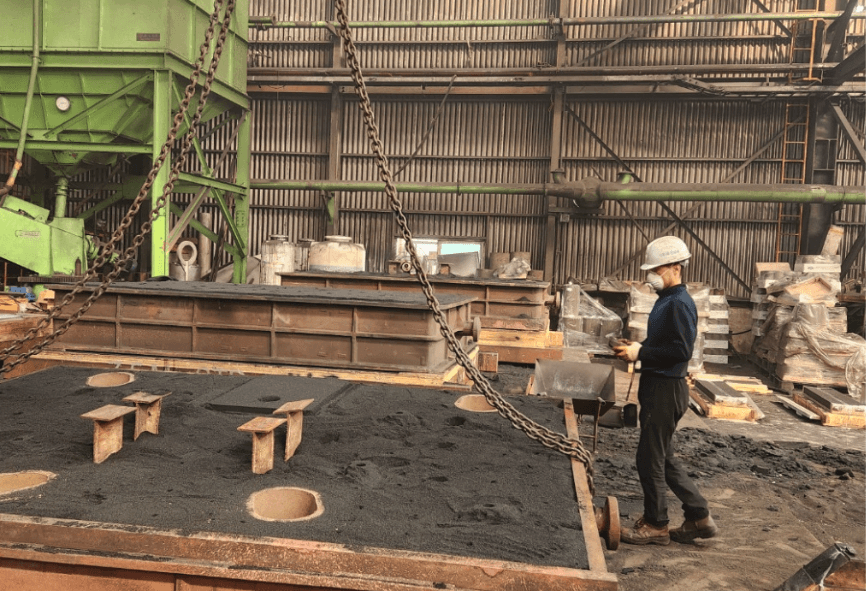

1. Sand Casting (Green Sand & Resin Sand)

The most widely used method for grey iron.

• Green Sand Casting is ideal for high-volume production of small to medium components.

• Resin Sand Casting provides stronger molds, allowing the manufacture of large-scale parts weighing several hundred tons.

• This flexibility makes sand casting the backbone of grey iron production in industries like construction, shipbuilding, and energy.

2. Lost Foam Casting

Lost Foam Casting uses expendable foam patterns to create complex shapes with high dimensional accuracy.

• Particularly effective for automotive parts, valve bodies, and intricate housings.

• Helps reduce tooling costs for low- to medium-volume production runs.

3. Shell Molding

Shell molding produces castings with excellent surface finish and dimensional accuracy.

• Best suited for medium to high-volume production of small, precision grey iron parts.

• While tooling costs are higher than sand casting, the improved quality makes it cost-effective in long runs.

4. Centrifugal Casting

Centrifugal casting is used to manufacture round and tubular components.

• Ideal for pipes, fittings, and components that must withstand internal pressure.

• Meets international standards such as EN877, ISO6594, ASTM A888, making it a reliable choice for infrastructure and utility systems.

5. Investment Casting

Investment casting provides superior precision and surface quality.

• Though more expensive than other methods, it’s chosen for parts requiring tight tolerances and complex geometries.

• Grey iron investment castings are less common, but can be an efficient solution for specialized applications where machining costs would otherwise be excessive.

Why Choose Grey Iron as a Material?

Grey iron (also known as gray iron) has been trusted for centuries due to its versatility, cost-efficiency, and reliable mechanical properties. It remains one of the most widely used casting materials in heavy industry, infrastructure, and machinery.

1. Excellent Castability

Grey iron melts at relatively low temperatures (around 1500 °C) and offers outstanding fluidity.

• This allows foundries to cast complex shapes and thin sections (as low as 4 mm).

• Compared to ductile iron, grey iron is easier to pour into intricate molds, reducing casting defects and production costs.

2. Cost-Effective Material

Among all metal grades, grey iron is one of the most economical choices.

• Its low raw material cost makes it ideal for large-volume applications.

• Common uses include machine beds, solid pipes, manhole covers, fences, and lathe components.

• This affordability, combined with wide availability, makes grey iron a go-to solution for both small and large projects.

3. Balanced Mechanical Properties

While not as strong as ductile iron, grey iron provides excellent stability and vibration damping.

• Tensile strength typically ranges from 20,000 to 60,000 psi, depending on composition and microstructure.

• It absorbs vibration well, making it suitable for lathe beds, press machine bodies, and guide rails.

• Additionally, its graphite structure contributes to wear resistance and machinability.

4. Corrosion Resistance in Non-Pressure Systems

Grey iron offers good corrosion resistance in environments without internal pressure.

• Widely used in EN877 soil pipes, gully gratings, and sewer systems.

• Provides long service life with minimal maintenance in civil infrastructure applications.

Applications of Grey Iron Casting

Grey iron castings are used across industries where cost efficiency, vibration damping, and durability are key. Typical applications include:

• Piping & Fittings: Soil pipes and drainage fittings (EN877/ISO6594, ASTM A888).

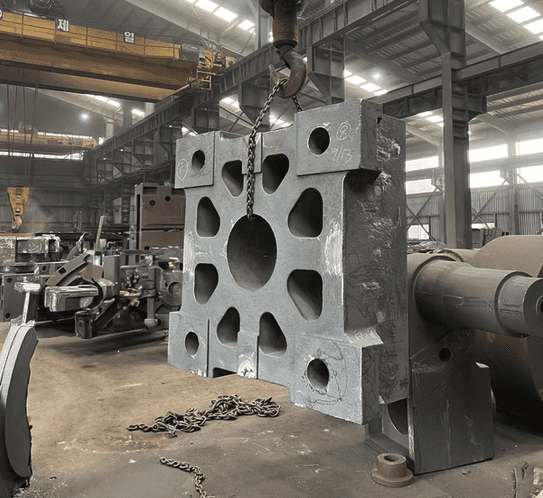

• Machine Beds & Press Bodies: Excellent stability and vibration absorption.

• Construction Components: Fence fittings, counterweights for elevators and forklifts.

• Pumps & Valves: Pump casings, impellers, valve bodies, discs, and gate/strainer components.

• Automotive Industry: Brake drums, gearbox casings, and housing components.

• Civil Infrastructure: Gully gratings, manhole covers, and sewer systems.

• General Engineering: Applications where high elongation or yield strength are not critical.

How to Purchase Grey Iron Castings

At RefacX, we support a streamlined process for sourcing grey iron components:

• Drawings Required: CAD drawings (IGS, STEP, AutoCAD, PDF) ensure accurate production.

• Collaboration for Customization: We work closely with clients to optimize designs for performance, cost, and manufacturability.
