What is Large Sand Casting? Manufacturing Process for Heavy Industrial Components

Among all manufacturing processes, sand casting stands as one of the oldest and most enduring techniques, with a history that stretches back thousands of years. At its core, casting refers to shaping a material by pouring molten metal into a prepared mold cavity, allowing it to solidify into a desired form. In the case of large sand casting, this principle is applied to produce oversized components that can weigh from several hundred kilograms to many tons.

These heavy castings are essential for industries that rely on robust and massive parts. Examples include large gear reducers, marine propellers, turbine housings for power generation and aerospace, and heavy-duty engine blocks. To achieve such scale, production must take place in specialized foundries equipped with high-capacity furnaces, advanced sand molding systems, and material handling technologies capable of managing both the size and weight of molten metal.

Unlike smaller-scale castings, large sand casting demands greater precision in planning and process control. Engineers must account for factors such as shrinkage allowances, cooling rates, and metallurgical properties to ensure structural integrity. Today, leading foundries rely on state-of-the-art simulation software to predict molten metal flow, anticipate defect formation, and optimize mold design.

Because of the complexity and high performance standards, selecting the right large sand casting partner is critical. The best manufacturers balance cost efficiency, dimensional accuracy, and long-term durability, delivering castings that meet the demanding requirements of industries like energy, marine, automotive, and aerospace.

Why Choose Aluminum for Large Sand Casting? Key Advantages & Uses

Aluminum’s unique properties make it one of the most important materials for large-scale sand casting applications. Its lightweight strength provides significant advantages in industries such as aerospace and automotive, where reducing weight without compromising durability is critical.


• Corrosion resistance extends the lifespan of components operating in harsh conditions, such as marine environments.

• High thermal conductivity improves the efficiency of engine and power system components.

• Excellent machinability ensures aluminum cast parts can be processed more easily compared to steel or iron.

• Sustainability is guaranteed, as aluminum is 100% recyclable with no loss in quality, making it ideal for large-scale industrial use.

With the growing demand for customized, high-reliability solutions, aluminum foundries have advanced to meet aircraft-grade standards. From oversized industrial housings to mission-critical aerospace components, large aluminum sand castings continue to prove indispensable in modern manufacturing.

7 Steps of Large Sand Casting Process

Large sand casting is not a single action but a multi-stage manufacturing process that requires precision, technical mastery, and specialized equipment. Each step is critical to ensuring the integrity and performance of oversized cast components.

Step 1. Pattern Making for Large Castings

The process begins with a pattern, which defines the geometry of the final component. Patterns for large castings are often made from wood, plastic, or metal, and may require modular assembly to achieve jumbo sizes such as turbine housings or ship components.

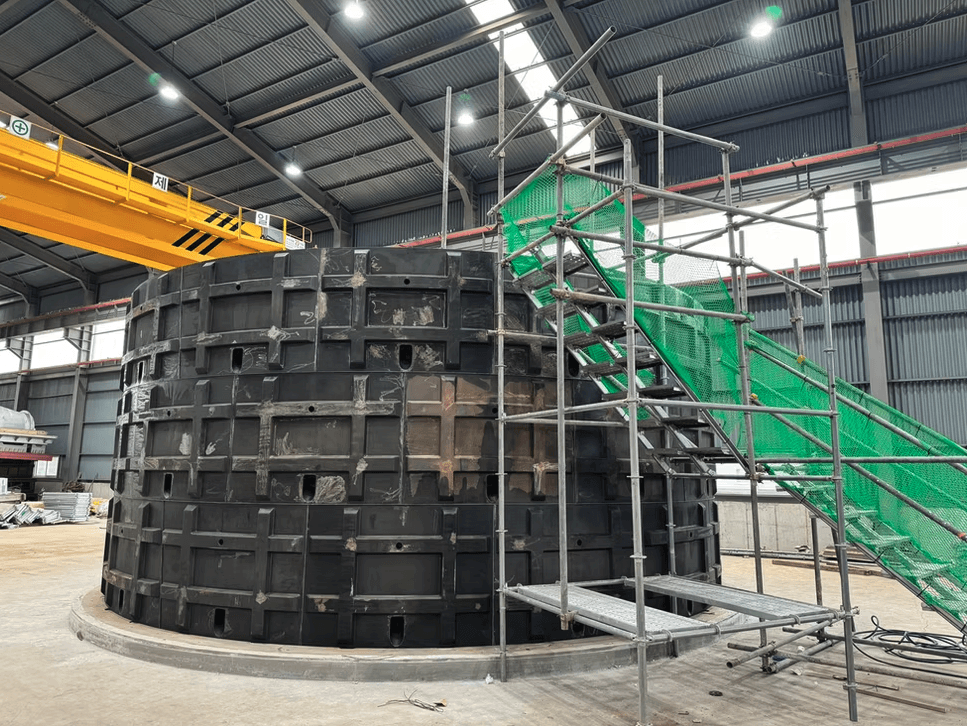

Step 2. Mold Preparation and Sand Compacting

Once the pattern is ready, sand is compacted into the mold cavity. To withstand the weight and heat of molten aluminum or iron, binders are added to reinforce the mold. This step is critical for large-scale sand castings where tons of molten metal will be poured.

Step 3. Core Making for Internal Cavities

For internal cavities, sand cores are used. These cores must be strong enough to hold their shape under the pressure of molten metal. In large sand castings, core design and placement are decisive for avoiding internal defects.

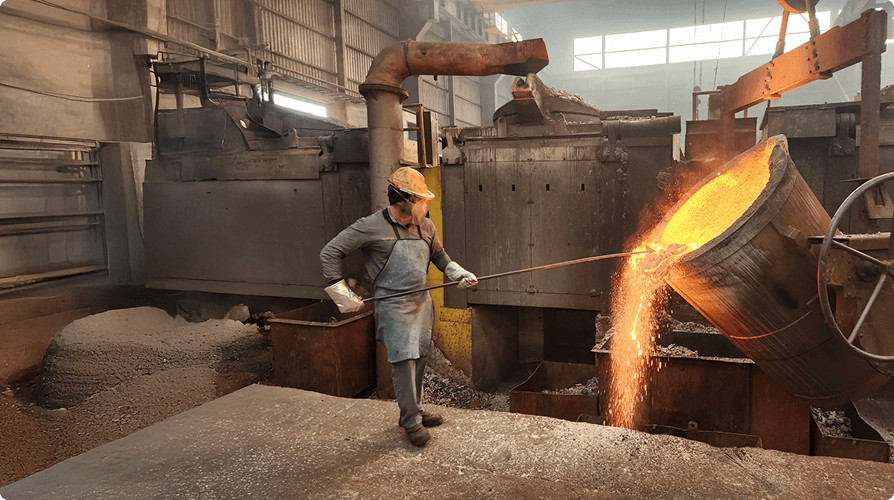

Step 4. Metal Melting and Pouring

Industrial furnaces capable of holding several tons of molten metal are used to heat aluminum to around 660°C (1220°F). Cranes and heavy-duty ladles carefully transfer and pour the molten metal into the mold to minimize turbulence and defects.

Step 5. Cooling and Solidification

Depending on size, large castings may take hours or even days to cool. Controlled cooling prevents deformation, internal stresses, or cracks. This stage directly impacts the mechanical strength and dimensional accuracy of the part.

Step 6. Shakeout and Cleaning

Once solidified, the sand mold is broken away. The raw casting undergoes shot blasting, grinding, and machining to achieve the desired surface finish and dimensional tolerances.

Step 7. Quality Inspection and Testing

Every large sand casting is subjected to rigorous quality checks—including NDT, ultrasonic inspection, and X-ray testing—to ensure structural integrity. In industries such as aerospace, energy, and shipbuilding, meeting tight tolerances and safety standards is non-negotiable.

Advantages of Large Sand Casting

Large sand casting remains a cornerstone of heavy manufacturing, especially in industries where oversized and complex parts are essential. Its ability to produce massive aluminum housings, turbine casings, and heavy construction components continues to give it an edge over other manufacturing methods. Below are the key benefits:

1. Capability for Oversized Components

Large sand casting allows the production of components weighing several tons in a single pour. Unlike machining, which requires carving from massive billets, sand casting can economically produce turbine housings, ship propellers, and heavy-duty energy equipment.

2. Design Flexibility and Complex Geometries

Sand casting supports both simple and intricate geometries, including internal cavities and complex shapes. With advanced simulation and patterning, manufacturers can reduce assemblies and welds, resulting in stronger parts and lower overall costs.

3. Cost-Effective Material Usage

Compared to forging, billet machining, or additive manufacturing, sand casting uses recyclable and affordable materials such as sand and aluminum. This makes it highly competitive for large-scale industrial production, especially when producing in batches.

4. Material Versatility with Aluminum Preference

While iron and steel are common, aluminum is the most sought-after material for large sand casting. Its lightweight strength, corrosion resistance, and recyclability make it indispensable for aerospace, automotive, marine, and energy applications.

5. Reduced Machining and Faster Turnaround

Because sand molds can replicate near-net shapes, large sand casting requires minimal secondary machining. This shortens production cycles and enables industries with strict deadlines to get parts faster without sacrificing quality.

Challenges and Solutions in Large Sand Casting

Despite its advantages, large sand casting comes with challenges that must be managed:


• Surface Finish: Additional machining or polishing may be necessary.

• Porosity Issues: Air pockets can reduce structural integrity.

• Looser Tolerances: Large castings cannot match the precision of CNC machining.

• Cooling Stresses: Improper temperature control can cause cracks or warping.

• Time-Intensive Process: Mold preparation and cooling may take days.

To overcome these challenges, working with an experienced large sand casting foundry is essential. Advanced simulation, controlled cooling systems, and precision inspection technologies allow manufacturers to deliver consistent, high-quality results.

Industrial Applications of Large Sand Casting

Large sand casting is trusted across multiple industries where durability, size, and precision are critical.


• Aerospace: Engine housings, landing gear structures, and high-strength structural modules.

• Automotive: Oversized chassis components, large engine blocks, and transmission housings.

• Marine: Ship propellers, seawater-resistant pump housings, and structural castings for vessels.

• Construction & Heavy Equipment: Gearboxes, press housings, counterweights, and frames for large machinery.

• Energy Sector: Nuclear power casings, hydro turbine housings, and wind turbine hubs.

These applications highlight the need for specialized large sand casting foundries capable of delivering intricate designs, reliable performance, and compliance with the world’s most demanding safety standards.

Conclusion

Large sand casting continues to stand as one of the most reliable and versatile methods for producing oversized industrial components. Its unique balance of scalability, design flexibility, and cost-efficiency ensures its place as a core process in modern manufacturing.

The integration of aluminum alloys further enhances the value of large sand casting—delivering lightweight strength, excellent corrosion resistance, and long-term durability. This makes it an indispensable solution for industries such as aerospace, defense, marine, and automotive.

However, success in large-scale casting depends on choosing the right manufacturing partner. Foundries with proven experience, advanced facilities, and rigorous quality assurance systems can ensure projects meet global standards for performance and safety.

As technology advances, large sand casting continues to evolve—powered by simulation software, high-capacity furnaces, and precision machining. This makes it not just a traditional method, but a sustainable, future-ready solution for heavy industry worldwide.
